Product Overview
The Dahua DH-HAC-HFW1249XP-IL-A-PRO is a next-generation analog CCTV camera designed to deliver full-color surveillance even in extremely low-light conditions, thanks to Dahua’s advanced WizColor technology. It is ideal for users who want high-quality night imaging, intelligent lighting, and enhanced audio capture without upgrading to a full IP camera system.
At its core, the camera features a 2MP Full HD (1080p) CMOS sensor, delivering clear and detailed video for everyday surveillance. What makes it stand out is WizColor technology, which combines a large aperture and AI-powered image processing to produce vivid, full-color images at night, even in minimal ambient light such as moonlight or street lighting.
The camera also incorporates Smart Dual Light, which intelligently switches between infrared (IR) and warm white illumination depending on the situation. It can operate discreetly in IR mode, then activate white light when motion is detected to capture color footage and deter intruders. With an impressive illumination range of up to 50 meters, it performs exceptionally well in large outdoor areas.
Unlike standard analog cameras, this model includes dual built-in microphones with noise reduction, allowing it to capture clear audio from up to 12 meters away. This adds valuable context to recorded footage, making it easier to understand events beyond just visuals.
The camera supports 4-in-1 video output (CVI/TVI/AHD/CVBS) via a simple DIP switch, making it highly versatile and compatible with a wide range of DVR/XVR systems. This is especially useful for upgrading older CCTV setups without replacing existing coaxial cabling.
To ensure consistent image quality in challenging conditions, the camera is equipped with AI-ISP processing, 3D noise reduction (3DNR), 130dB true WDR, and distortion correction. These technologies help deliver clear, balanced images even in backlit or high-contrast environments.
Built for durability, the camera features an IP67-rated weatherproof housing, making it suitable for both indoor and outdoor installations. It can operate reliably in harsh conditions such as rain, dust, and extreme temperatures ranging from -40°C to +60°C.

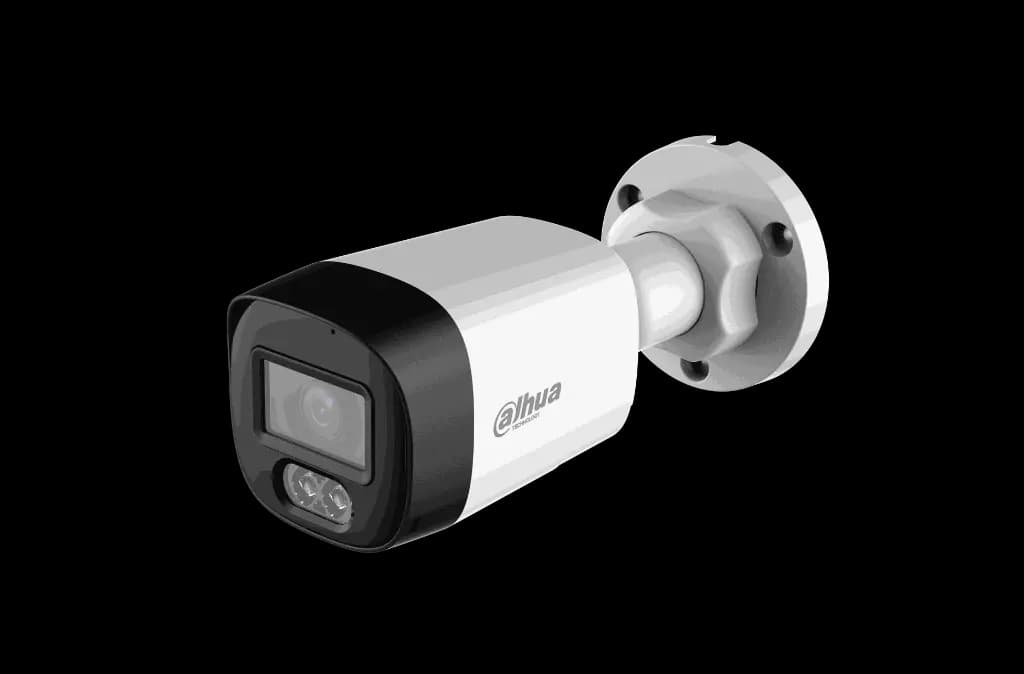

Its fixed focal lens (2.8mm or 3.6mm) provides a wide field of view, making it ideal for monitoring entrances, parking areas, perimeters, and open spaces. The bullet design also allows easy mounting and directional adjustment for targeted surveillance.
Key Specifications
Model: Dahua DH-HAC-HFW1249XP-IL-A-PRO
Resolution: 2MP (1920 × 1080 Full HD)
Technology: HDCVI (4-in-1: CVI/TVI/AHD/CVBS switchable)
Image Technology: WizColor (full-color night imaging)
Night Vision: Smart Dual Light (IR + Warm White Light)
Illumination Distance: Up to 50 meters (IR & White Light)
Audio: Dual built-in microphones with noise reduction (≈12m range)
Lens Options: 2.8mm / 3.6mm fixed lens
Image Enhancements: AI-ISP, 3DNR, 130dB WDR, distortion correction, BLC
Frame Rate: Up to 1080p @ 25/30fps
Weather Resistance: IP67-rated (outdoor-ready)
Power Supply: 12V DC
Power Consumption: Approx. 5.6W
Use Cases: Homes, businesses, parking lots, warehouses, perimeter security
The Dahua DH-HAC-HFW1249XP-IL-A-PRO is one of the most advanced 2MP analog cameras available, thanks to its WizColor full-color night vision, long-range illumination, and dual-mic audio capture.
If you're upgrading an existing CCTV system and want near-IP-level night performance without changing your wiring, this model is a top-tier choice.
