Product Overview

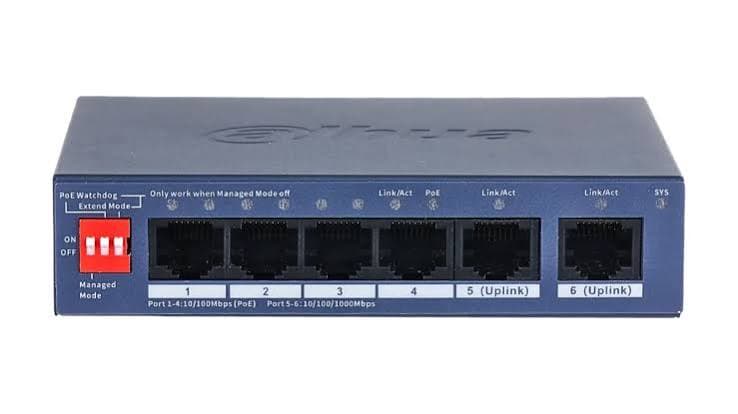

The Dahua DH-CS4006-4ET2GT-36 is a compact 6-port cloud-managed PoE desktop switch designed for IP surveillance systems, small businesses, retail stores, and office networks. Featuring 4 Fast Ethernet PoE+ ports, 2 Gigabit RJ45 uplink ports, and a 36W PoE power budget, it delivers both network connectivity and power over a single Ethernet cable for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. With DoLynk Care cloud management, intelligent PoE features, and long-distance transmission support, it offers a reliable and easy-to-manage networking solution.

The switch provides 4 × 10/100Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards, allowing each port to deliver up to 30W, with a total PoE power budget of 36W. Additionally, 2 × 10/100/1000Mbps Gigabit RJ45 uplink ports provide high-speed connections to routers, NVRs, servers, or the core network, ensuring smooth data transmission for surveillance and business applications.

Supporting DoLynk Care cloud management, the DH-CS4006-4ET2GT-36 enables administrators to remotely monitor, configure, and manage the switch through a web interface or mobile app. It also supports automatic network topology generation, device monitoring, fault alarms, VLAN configuration, and simplified network deployment.

The switch includes intelligent networking features such as PoE Watchdog, 250m Long-Distance PoE Transmission, IEEE 802.1Q VLAN, loop prevention, storm control, port isolation, and DHCP client support, improving network stability, security, and reliability. Convenient DIP switches allow users to quickly switch between managed and unmanaged modes, enable Extend Mode, or activate PoE Watchdog.

Built with a durable metal housing, the switch supports both desktop and wall-mounted installation. It operates reliably in temperatures ranging from -10°C to +55°C, making it suitable for a variety of indoor commercial and surveillance deployments.

Overall, the Dahua DH-CS4006-4ET2GT-36 is an excellent networking solution for small surveillance systems and business environments that require cloud management, intelligent PoE functionality, and dependable network performance.

Key Specifications

• Brand: Dahua

• Model: DH-CS4006-4ET2GT-36

• Product Type: Cloud-Managed PoE Desktop Switch

• Layer: Layer 2

• Total Ports: 6

• PoE Ports: 4 × RJ45 10/100Mbps PoE+

• Uplink Ports: 2 × RJ45 10/100/1000Mbps Gigabit

• PoE Standards: IEEE 802.3af, IEEE 802.3at

• Maximum PoE Output per Port: Up to 30W

• Total PoE Power Budget: 36W

• Switching Capacity: 4.8Gbps

• Packet Forwarding Rate: 3.57Mpps

• MAC Address Table: 2K

• Packet Buffer: 4Mbit

• Jumbo Frame Support: Up to 9216 Bytes

• VLAN Support: IEEE 802.1Q VLAN (Up to 32 VLANs)

• Cloud Management: DoLynk Care

• Management Options:

  • Web Management

  • Cloud Management

• Network Features:

  • Long-Distance PoE Transmission (Up to 250m)

  • PoE Watchdog

  • IEEE 802.3x Flow Control

  • Storm Control

  • Port Isolation

  • Loop Prevention

  • DHCP Client

  • LLDP

  • Port Mirroring

• Hardware Controls:

  • Managed/Unmanaged Mode

  • Extend Mode

  • PoE Watchdog

  • Reset Button

• Power Supply: External 53V DC Adapter

• Power Consumption:

  • Idle: ≤3W

  • Full Load: ≤42.4W

• Operating Temperature: -10°C to +55°C

• Housing Material: Metal

• Installation: Desktop or Wall Mount

• Recommended Applications: IP Surveillance Systems, Offices, Retail Stores, Small Businesses, Wireless Access Points, VoIP Phones, NVR Networks
