Product Overview

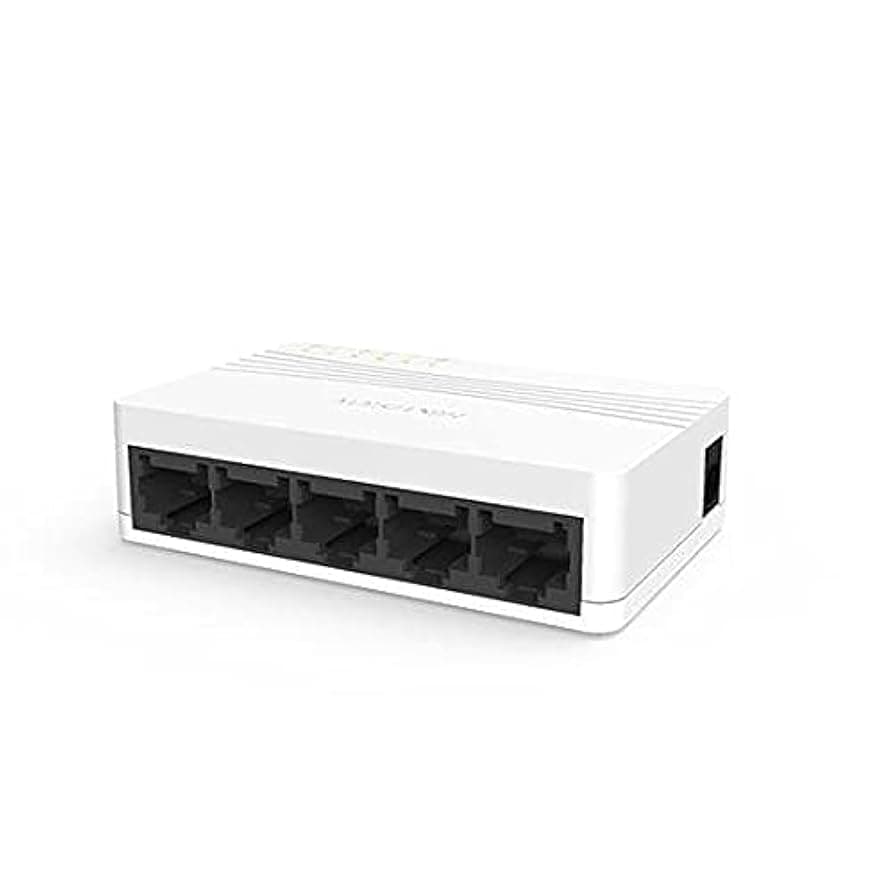

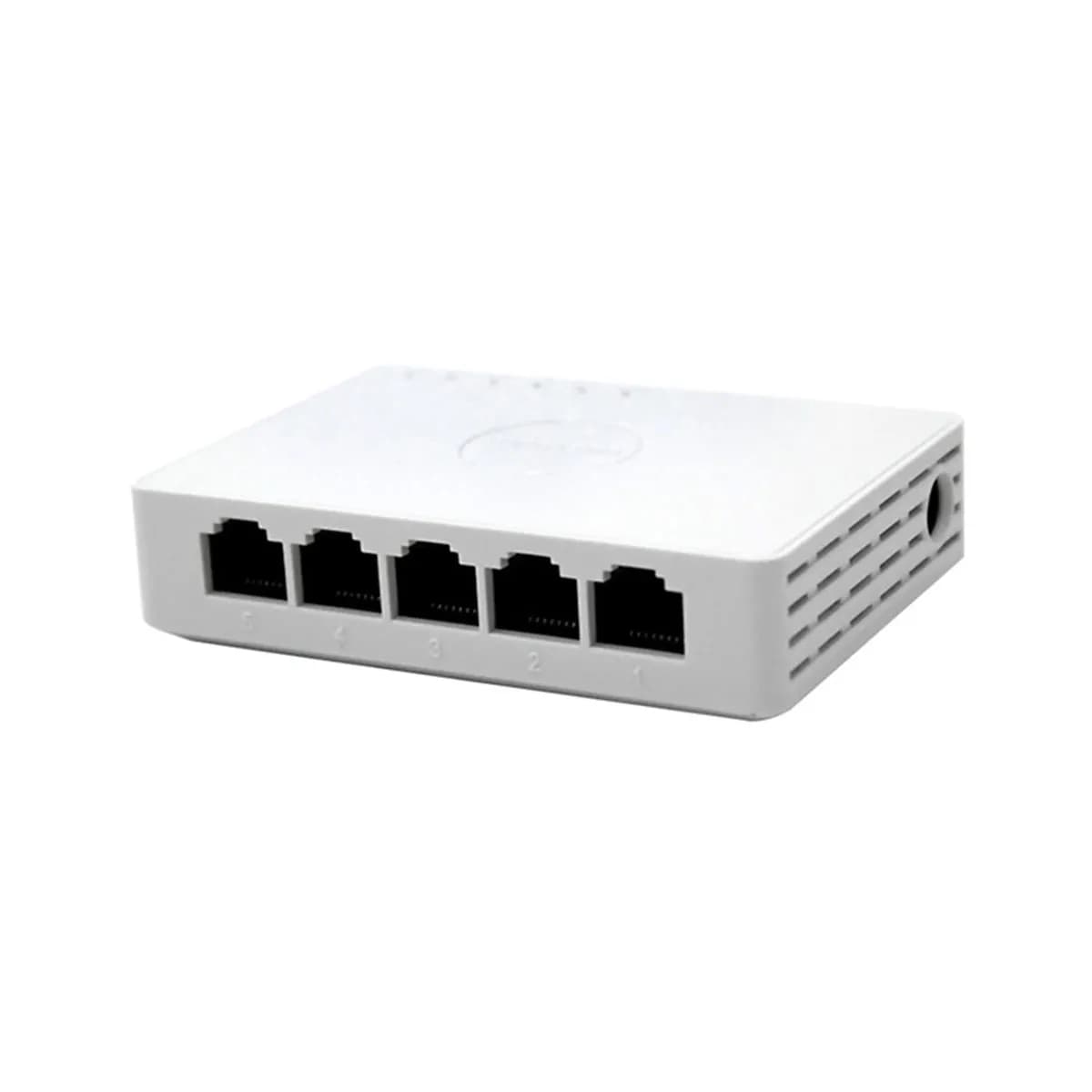

The Hikvision DS-3E0505-O is a 5-Port Gigabit unmanaged network switch built with a durable metal casing for reliable and long-term performance. It is designed for small to medium-sized networks that require stable, high-speed connectivity. Supporting plug-and-play installation, it allows effortless expansion of wired connections for IP cameras, computers, NVRs, and other devices.
Its compact design and fanless operation ensure quiet, energy-efficient performance, making it suitable for home, office, or surveillance networking setups.
Key Features
5 × 10/100/1000 Mbps RJ45 ports
Full-duplex and half-duplex support with auto-negotiation
Plug-and-play, no configuration required
Stable Gigabit performance for fast data transfer
Durable metal enclosure for heat dissipation and reliability
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab compliant
Fanless design – silent operation
Desktop or wall-mount installation
Technical Specifications
Ports: 5 × 10/100/1000 Mbps RJ45
Switching capacity: 10 Gbps
Packet forwarding rate: 7.44 Mpps
MAC address table: 2K
Buffer memory: 1 Mb
Housing: Metal, fanless design
Dimensions: 100 × 100 × 26 mm
Weight: ~0.3 kg
Power supply: DC 5V, 0.6A
Operating temperature: 0°C to 40°C
Ideal For
Expanding home/office network connections
IP camera systems (CCTV setups)
NVR/DVR connectivity
High-speed wired connections for computers, printers, and smart devices
