Product Overview
The TP-Link TL-LS105GP PoE+ Switch is a compact and powerful networking switch designed for high-speed connectivity and easy PoE device deployment. It is especially ideal for CCTV systems, small offices, and home networks where you want both data and power delivered through a single cable.
This switch comes with 5 Gigabit Ethernet ports (10/100/1000Mbps), ensuring fast and stable data transfer speeds up to 10Gbps switching capacity across all ports. This makes it suitable for modern devices that require reliable network performance such as NVRs, routers, and access points.
Out of the 5 ports, 4 are PoE+ ports, meaning they can deliver both power and data through one Ethernet cable. This is extremely useful for powering devices like IP surveillance cameras, Wi-Fi access points, and VoIP phones, reducing the need for separate power adapters and simplifying installation.
The switch supports the IEEE 802.3af/at PoE+ standard, with each PoE port capable of delivering up to 30W of power, and a total power budget of around 65W, allowing multiple devices to run simultaneously without issues.

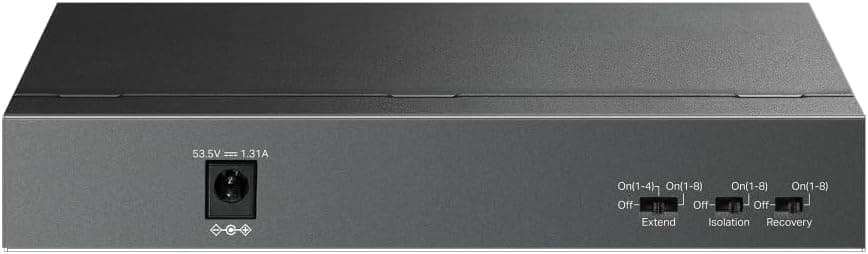

For CCTV and outdoor installations, the TL-LS105GP includes an Extend Mode, which allows PoE transmission distances of up to 250 meters (at reduced speed). This is especially useful when cameras are installed far from the main control room or switch location.
Another helpful feature is plug-and-play functionality, meaning no configuration is required. You simply connect your devices, and the switch automatically handles power and data distribution—making it very beginner-friendly.
The switch also includes intelligent power management, which automatically prioritizes power delivery to prevent overload and protect connected devices. This ensures stable operation even when multiple PoE devices are active at the same time.
Its compact desktop metal design makes it durable and easy to place in small spaces such as office desks, network cabinets, or CCTV control rooms. It also runs silently, making it suitable for indoor environments.
Key Specifications
Model: TP-Link TL-LS105GP
Ports:
5 × Gigabit Ethernet Ports
4 × PoE+ Ports
Speed: Up to 10Gbps switching capacity
PoE Standard: IEEE 802.3af/at
Max Power per Port: 30W
Total PoE Budget: ~65W
Distance: Up to 250m (Extend Mode)
Switch Type: Unmanaged (Plug & Play)
Use Cases: CCTV cameras, Wi-Fi APs, VoIP phones, small offices
Build: Metal desktop enclosure
The TP-Link TL-LS105GP is a highly practical Gigabit PoE switch that balances performance, simplicity, and affordability. With 4 PoE+ ports, Gigabit speeds, and long-distance support, it is an excellent choice for small surveillance systems and modern compact networks.
