Product Overview

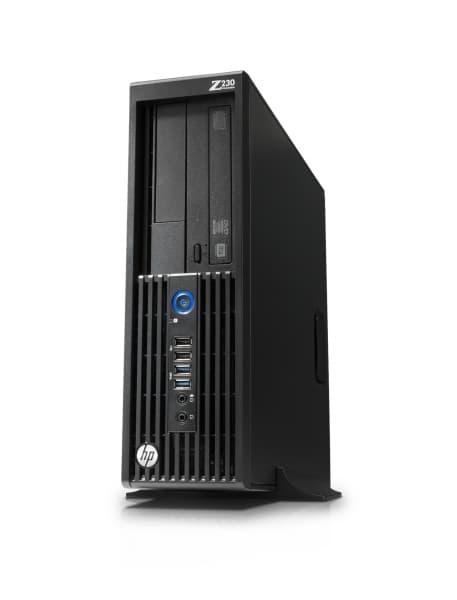

The Z230 Small Form Factor Workstation from HP features a 3.3GHz Intel Core i5 processor along with 8GB of DDR3 RAM. It supports multitasking as well as provides the processing power to support a variety of multimedia and software applications. This Intel processor also comes equipped with NVIDIA NVS 310 Graphics to support enhanced multimedia functionality. Along with enhanced graphics support, you also benefit from integrated HD Realtek audio surround sound completing the multimedia experience. Saruk Digital Solutions has professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a three-year warranty.
Rock Solid Reliability
This workstation is designed for heavy workloads. It is capable of handling the demanding workloads of business applications. HP's extreme testing and validation processes ensure that the workstation delivers superior performance and reliability in any environment. The workstation has minimum environmental impact and lowers your total cost of ownership with a 92% efficient power supply and enhanced system reliability. This workstation has earned a wide range of ISV certifications to deliver better and smarter performance.
The Workstation that Fits Your Workspace
The redesigned workstation provides the capability and flexibility you demand in a 61% smaller form factor than the tower. Maintain impressive performance, greater storage capacity, more input/output ports, and greater flexibility while retaining the same small form factor size. Save time with easy data transfers. Accommodate more storage devices with four total drive bays, including a 2.5" HD bay for high-performance solid state drives. Boost the storage performance with RAID, solid state drives, or get the best of both worlds by combining large hard drives with an optional solid state drive as a cache device. Optimize this workstation for peak performance. The HP Performance Advisor helps you easily configure your system with suitable settings designed for specific applications.
Totally Immersive and Perfectly Productive
Power to spare and share. The Intel Xeon processors and rich graphics keep up with your work, thus increasing your productivity. Plug in and work on up to six displays. Enjoy superior performance and energy efficiency from Intel's next-generation processor architecture. This workstation allows you to choose between cost-effective integrated graphics and powerful 2D or 3D discrete graphics choices. With HP RGS (Remote Graphics Software) you can take your graphics intensive workstation applications wherever you go. Collaborate with colleagues around the office or around the world, in real-time.
Expansion slots
- 1 PCIe Gen3 x16 slot
- 1 PCIe Gen2 x4 slot /x16 connector
- 1 PCIe Gen2 x1 slot/x4 connector
- 1 PCIe Gen2 x1 slot
Expansion bays
- 1 external half height 5.25" bay
- 1 shared internal/external 3.5" bay.
- 1 internal 3.5" bay
- 1 internal 2.5" bay
Front I/O
2 USB 3.0, 2 USB 2.0, 1 Headphone, and 1 Microphone.
Internal I/O
1 USB 3.0 and 3 USB 2.0 ports available as 2 separate 2 x 10 (3.0 x1, 2.0 x1) and 2 x 5 (2.0 x2) header: supports one HP Internal USB 2.0 Port Kit and one USB 3.0 Media card reader.
Rear I/O
3 Displayport (DP 1.2) outputs from Intel HD graphics (available on specific processors only); 2 USB 3.0 ports, 4 USB 2.0 ports, 2 serial ports (1 standard, 1 optional), 1 parallel port (optional), 2 PS/2, RJ-45 (LoM), 1 audio Line-in, and 1 audio Line-out; 2 IEEE 1394b ports (optional).
Interfaces supported
14-in-1 Media Card Reader (optional)
Power supply
240 watts wide-ranging, active Power Factor Correction, 92% Efficient
Chipset
Intel C226 chipset
Memory
4 DIMM slots, supporting up to 32GB ECC/non-ECC, DDR3 1600 MHz
Graphics specifications
NVIDIA NVS 310 512MB Graphics
Form Factor
2.713 inches in height × 6.150 inches in length
Graphics Controller
NVIDIA NVS 310
Bus Type
PCI Express x16, 2.0 compliant
Memory
- Size: 512MB DDR3
- Clock: 875Mhz
- Memory Bandwidth: 14GB/s
Connectors
2 x DisplayPort 1.2
Maximum Resolution
Up to 2560 x 1600 (digital display) per display.
Image Quality Features
The following video formats are supported:
- MPEG2
- MPEG4 Part 2 Advanced Simple Profile
- H.264 SVC codec support
- Support for 3D Blu Ray
- VC1
- DivX version 3.11 and later
- MVC
Display Output
DisplayPort output:
- Drives two DisplayPort enabled digital display at resolutions up to 2560 — 1600 at 60 Hz with reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310 graphics card
- Supports 2 monitors up to resolution of 1920 — 1200 at 60 Hz with reduced blanking using DisplayPort 1.2 multi stream topology technology.
DVI-D output:
- Drives two digital display at resolutions up to 1920 — 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors
- Drives two digital display at resolutions up to 2560— 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors
HDMI output:
- NVS 310 is capable of driving two high definition (HD) panels up to resolutions of 1920 — 1080P at 60 Hz using DisplayPort to HDMI cable adaptors
VGA display output:
- Drives two analog display at resolutions up to 1920 — 1200 at 60 Hz using DisplayPort to VGA cable adaptors
NVIDIA NVS 315 1GB Graphics (for HP Workstations)
Form Factor
2.713 inches in height × 5.7 inches in length
Graphics Controller
- NVIDIA NVS 315 (using GF119-825 GPU)
- Number of Cores: 48 CUDA cores
- Max. Power: 19.3W
- Cooling Solution: Active fan heatsink
Bus Type
PCI Express x16, 2.0 compliant
Memory
- Size: 1GB DDR3
- Clock: 875Mhz
- Memory Bandwidth: 14GB/s
Connectors
DMS-59 output
Maximum Resolution
- DMS-59 to VGA: 2048 x 1536 @ 85Hz
- DMS-59 to DVI: 1980 x 1200 @ 60Hz
- DMS-59 to DP: 2560 x 1600 @ 60Hz
Image Quality Features
- MPEG2
- MPEG4 Part 2 Advanced Simple Profile
- H.264 SVC codec support
- Support for 3D Blu Ray
- VC1
- DivX version 3.11 or later
Display Output
Up to 2 displays in the following configurations:
DisplayPort output:
- Drives two DisplayPort enabled digital displays at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected via the DMS-59 to DP adapter.
DVI-D output:
- Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DMS-59 to DVI-D single-link cable adaptor
VGA display output:
- Drives two analog display at resolutions up to 2048 × 1536 at 85 Hz using DMS-59 to VGA cable adaptor.
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
DX11, OpenGL 4.3
General Specifications
Intel Corei5 4590 3.30GHz
8GB DDR4 SDRAM
1000GB HDD
NVIDIA NVS 310 Graphics
One Year Warranty
