Product Overview:
Design and Build

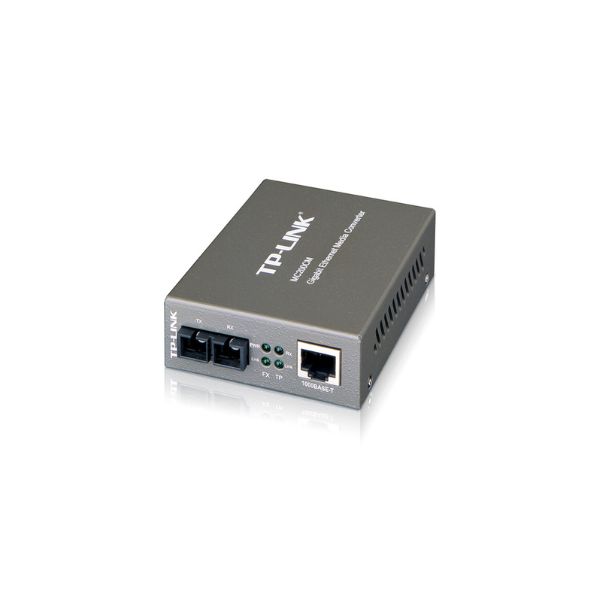

The TP-Link MC200CM is a Gigabit Ethernet Media Converter designed to bridge connections between different types of network media, specifically converting between copper Ethernet (RJ45) and fiber optic (SFP) connections. It is compact and features a sturdy metal housing, making it suitable for both desktop and rack-mounted installations.
Key Features
- Media Conversion: The MC200CM provides conversion between 10/100/1000Mbps Ethernet (RJ45) and 1000Mbps fiber optic connections. This enables network expansion and integration by connecting copper Ethernet devices to fiber optic networks.
- Gigabit Speed: It supports Gigabit Ethernet speeds (1000Mbps) on both the copper and fiber interfaces, ensuring high-speed data transmission and minimal latency.
Ports and Connectivity
- Ethernet Port: One 10/100/1000Mbps RJ45 Ethernet port for connecting to standard copper Ethernet networks. This port auto-negotiates speed and duplex settings for optimal performance.
- Fiber Port: One SFP (Small Form-Factor Pluggable) slot for connecting to fiber optic networks. The SFP module is not included with the converter and must be purchased separately based on your specific fiber optic requirements (e.g., single-mode or multi-mode fiber, different wavelengths).
Performance and Features
- Auto-Negotiation: The RJ45 port supports auto-negotiation to automatically select the best speed and duplex settings for optimal performance and compatibility.
- Link Fault Pass-Through (LFP): The MC200CM supports LFP, which helps detect and notify about link faults on either side of the media converter, providing a mechanism for troubleshooting and network reliability.
- LED Indicators: The device includes LED indicators for power, link, and activity status, allowing for easy monitoring of device operation and network connectivity.
Installation and Configuration
- Plug-and-Play: The MC200CM is designed for easy installation with no configuration required. Simply connect the RJ45 and SFP ports to the respective network cables and the device will automatically handle the media conversion.
- Rack-Mountable: Although compact, the MC200CM can be rack-mounted using an optional rack-mount kit, making it suitable for data center and network rack environments.
Applications
- Network Expansion: Useful for extending network reach by bridging copper Ethernet and fiber optic segments, allowing for the integration of fiber optic links in an otherwise copper-based network.
- Connecting Fiber Networks: Ideal for connecting fiber optic network segments to copper Ethernet devices, facilitating integration and expansion of existing networks.
Additional Features
- Robust Build: The metal casing ensures durability and reliability in various installation environments.
- Standard Compliance: Complies with IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.3z (Gigabit Fiber Ethernet) standards for compatibility and performance.
